The Looming Failure of Wind Power
Visitor put up by Mike O’Ceirin
Abstract
This isn’t about “Local weather Change.” It addresses the problem of whether or not wind as applied is an efficient alternative for fossil pushed energy stations. That is about Australia the place we’re in line with the mainstream media in a transition to renewable power though after a few years, we’re removed from it. We’re closing coal-fired energy stations, however the growth of renewable power is gradual. We’re approaching a disaster level. The truth of the Australian state of affairs will be utilized worldwide, and this report attracts on knowledge and nothing else. This
There are a lot of offhand feedback that we should always simply change fossil as a supply of electrical energy with renewables. What’s the element and the way profitable has it been? That’s exceedingly tough data to come back by. This so-called transition began in 2000 with the implementation of the Renewable Power Goal.
For years, the Australian Power Market Operator (AEMO) has revealed knowledge on the quantity of power dispatched to the jap grid by all mills registered with them. Utilizing this knowledge, a relational database was created for evaluation.
Wind on the finish of 2019 was eight.three% of the dispatched power to the jap grid. The infrastructure to realize that is extraordinarily massive. There are 55 lively wind energy stations over an enormous space. The plate capability is 6973 MW and their capability issue is 29%. On at present’s costs that may be a value of $15.7 billion. The dispatched power from wind was 16.9 TW hours in 2019. This exceeds the second-biggest coal-fired energy station on the grid, Bayswater. After 20 years the largest supply of renewable power can on common change one massive coal-fired energy station. There are 16 coal-fired energy stations and their lifespan is twice that of wind.
The supporters of wind power ignore the precise efficiency. Plate Capability is much less necessary than power dispatched. Critically the significance of variability will not be understood. Religion that the big pumped storage facility of Snowy Mountains 2.zero will stabilise renewable power dispatch is a delusion.
Our present wind infrastructure plus that giant pumped storage theoretically may change just one massive coal-fired energy station. To do this it needs to be steady. That comes at a price the present estimate is $5 million however extra importantly the opposite value is a diminishing of the obtainable power from wind. The info when modelled for 2019 exhibits that the quantity of power obtainable drops by three TW hours to 14 TW hours. To place it one other manner stability with pumped storage means 17% much less electrical energy.
Wind is a failure; each 2 GW of fossil era is just with alternative by rebuilding your complete wind infrastructure plus a pumped storage facility of the scale of snowy Mountains 2.zero once more. It is not going to occur. Wind is rising very slowly and that may proceed at that place. During the last 9 years wind has grown by 5.5%, and just one.three% in 2019.
Bayswater Versus Wind
If wind power era is to switch coal, we should examine them. Bayswater is the second largest coal-fired energy station on Australia’s jap grid it has a plate capability of two.6 GW. A comparability will be made with the information produced by the AEMO.
Wind dispatched about the identical quantity of power as one massive coal-fired energy station in 2019. For the comparability I select Bayswater Black coal station within the Hunter Valley of New South Wales. That single station dispatched 16 TW hours throughout 2019. The 55 wind stations linked to the jap grid unfold over your complete east coast of Australia dispatched 17 TW hours. Advocates of renewables suggest that that’s the reply to changing coal. Wind provided eight.three% and fossil fuels 77.5% of electrical energy on the jap grid. Can we then merely set about duplicating our present wind infrastructure ninefold and coal is gone?
First, we should contemplate how coal which is a managed generator compares with wind that actually will not be.
The chart above exhibits the entire month of July 2019 in five-minute steps. The revealed knowledge by the AEMO has that decision however to point out this in print is tough. This chart stands for 9000 rows of knowledge and is consultant of all the opposite months.
The dispatched electrical energy from a coal-fired energy station will depend on the load and the variety of generators working. The low output to start with of the month for example was as results of solely three generators working. The chart exhibits coal does range, on this case from 112 MWh to 220 MWh. The variation is due to demand.
By authorities mandate the power delivered by wind should be accepted and it isn’t pushed by demand however by the quantity of wind occurring at anyone time. The chart exhibits that variation, it’s from 12 MWh to 385 MWh. Since it isn’t managed how can it’s accommodated? Within the electrical energy trade that the query is, how dispatchable is it? For a generator to be helpful when run it should reliably produce a identified quantity of power when wanted. Could be it helpful for example to have a automobile which is just able to greater than 20 km an hour some days? If renewables are going to develop into sensible as the only real supply of electrical energy it should have the ability to fulfill the demand when required. The one approach to obtain that’s storage of the power produced in order that it’s dispatchable. For this to occur there’s a important monetary and effectivity value.
Wind Power Storage
The proposed pumped storage facility known as Snowy Mountains 2.zero is the anticipated reply. It’s designed to supply 2 GW for seven days. This implies 336 GW hours to stabilise wind. The present set up of wind has a plate capability of seven GW. Can these two collectively provide electrical energy in order that coal might be not wanted?
A regular dispatch must be calculated and wind would provide that as the primary order of enterprise. Measuring the common energy output of wind over the entire yr offers a results of 1953 MW. Our knowledge is in five-minute steps in order that output will ship 163 MWh for every 5 minutes. That can be achieved if there isn’t any loss within the storage. As defined under these losses will carry the usual load all the way down to 134 MWh for every 5 minutes.

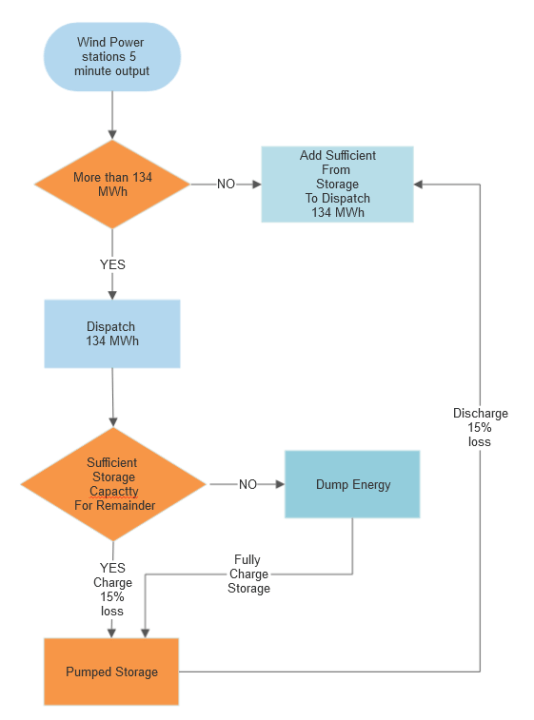

The flowchart exhibits the method wanted. If extra is being generated than the usual load, then the load is dispatched, and the rest used to cost the storage. Until after all the storage is totally charged. If lower than the usual load is being generated, then enough from storage is added and the usual load dispatched.
Charging means in a pumped storage system that water can be pumped to the higher dam. Discharging means water can be launched from the higher dam to run generators that generate the required electrical energy. This implies a lack of 30% and should be included within the calculations.
One other of loss will happen if the utmost capability has been reached. Any extra electrical energy generated at this level can be misplaced. These components imply it isn’t potential to take care of electrical energy dispatched beneath the present system. Trial and error exhibits that within the case of 2019 hypothetically 83% of the common will be achieved. Stabilising utilizing pumped storage means 17% much less power can be dispatched! That’s 134 megawatt hours each 5 minutes which is 83% of 163 megawatt hours.
It’s not potential to point out these items of their entirety in a chart, so it’s calculated on the five-minute steps for 2019. The next chart exhibits a part of that, July in five-minute steps.
So right here graphically is the method. The inexperienced exhibits when there may be extra power that can be utilized to cost storage and the purple exhibits when power should be drawn again from the storage. The black line represents a relentless dispatch to the grid. After all, if this infrastructure have been constructed wind would then be beneath management and the dispatch would range in line with the demand.
Then the query is can this be utilized to a whole yr? It may be modelled, and the next chart exhibits the results of modelling the storage within the above instance for 2019. Snowy Mountains 2.zero has a most capability of 336 GW hours. As a place to begin it’s assumed that in the beginning of the yr there may be 225 GW hours obtainable as carryover from the earlier yr. The modelling has been completed in 30-minute steps due to the bodily limitations on displaying the resultant chart. The quantity of electrical energy dispatched in half-hour increments is zero.802 GW hours which is after all six instances the above determine for 5 minutes.
So, step by way of the operation for every half-hour for your complete yr. That’s observe the flowchart above. This produces knowledge that may be put right into a chart in order that it may be seen visually what can be occurring.
On the finish of January 112 GW hours is accessible. From there prices improve till the center of February. The cost is maintained roughly till early March. Right here is an instance of what may occur from there till late March it’s all discharge. On 24 March the standing of the storage is 19 GW hours. That may be a discharge of 200 GW hours in 17 days! There’s a rise in cost from this level till it drops once more to 12 GW hours 20 days later. There may be doubt in apply dropping to such a low stage could be an appropriate threat. When it comes to share it signifies that the pumped storage is at four.eight% of the total cost. The anticipated steady output achieved could be zero.802 GW hours per half-hour. That is crucial attempting for any improve leads to failure.
From there the wind comes again and there are fixed rises till 11 June. At that time the pumped storage is totally charged. Discover the flat tops within the storage line. This represents the storage being totally charged. As proven within the flowchart that is the place power should be dumped as a result of it has nowhere to be saved. It can not simply be dispatched as a result of that will be destabilising the grid in a world the place there isn’t any different power supply.
So what’s the finish level of this? Hypothetically a big pumped storage together with the present wind infrastructure may produce steady dispatchable energy to switch one fossil energy station. However there’s a value. In keeping with the mannequin this is able to produce 14 TW hours for 2019. This isn’t equal to Bayswater, being brief by two terawatt hours. Financially the associated fee can be about $21 billion! $16 billion for the wind infrastructure and 5 billion for pumped storage.
This effort would produce eight.three% of the dispatched electrical energy on the jap grid. Fossil power continues to be 77.5%. It doesn’t appear seemingly that wind will change it. Web page Break
Wind Power Infrastructure
There are a lot of wind energy stations, 55 in all. Essentially the most northerly being Mount Emerald in Queensland and essentially the most southerly Musselroe in Tasmania. These are 2627 km aside. On the opposite dimension the furthest west is Cathedral Rocks in South Australia and the furthest east on the identical latitude is Gullon Vary in New South Wales. They’re 1269 km aside. This could suffice to realize stability if what’s required is a sufficiently massive space. If we estimate the variety of wind generators by dividing the plate capability by 2.5 MW there are roughly 2789 precise generators. Precise land space will be discovered from the work completed by David Mackay. The realm is almost 3500 km².
In 2019 wind dispatched 16.94 TW hours to the grid. Take the plate capability and multiply it by the variety of hours within the yr offers the utmost power potential of 57 TW hours. Dividing that into the precise dispatched terawatt hours leads to a determine of 29%. That is called the capability issue and is a measure to check with different types of power era. Within the case of renewables by authorities mandate all power should be taken by the retailers. From this I assume within the case of wind it’s an correct measure.
The price of this massive infrastructure is roughly $15.7 billion. A current energy station Silverton close to Damaged Hill has been taken as a base for this value its measurement is 200 MW and was constructed at a price of 450 million. It additionally has 25 km of transmission line which is assumed to be a typical requirement. The anticipated dispatch was 780,000 GW hours each year however in 2019 solely 424,000 MW hours was achieved. Probably it was not totally operational, but it surely was totally commissioned by Might 2018.

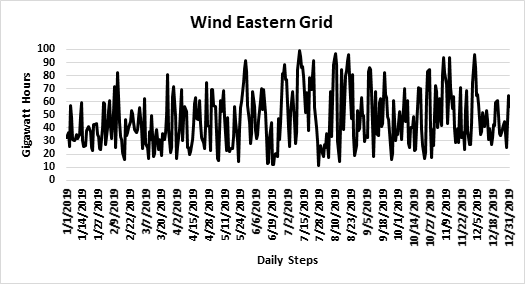

The dispatched power from an electrical energy generator will range. This additionally applies to wind. The chart exhibits this variation for all of the wind stations above mixed.
On common wind dispatched 46.four GW hours per day. The bottom day was 11.53 GW hours and the very best 99.11 GW hours. That’s a variety of 88 GW hours.
Web page Break
Coal Power Infrastructure
Within the case of wind all stations linked to the jap grid have been included. Within the case of coal evaluating all stations with wind would create a big mismatch. There are 16 coal-fired energy stations which dispatched 140 TW hours of power in 2019 in opposition to 17 TW hours for wind. I’ll select our second largest coal-fired energy station Bayswater within the Hunter Valley. In 2019 this one station dispatched 16 TW hours and was not working at full capability. It has 4 generators every of 660 MW so a joint plate capability of 2640 MW. In 2019 the capability issue for this station was 70%. What this implies whether it is to be utilized general to black coal energy stations is necessary. A black coal energy station is clearly beneath the management of its operators and this may be seen graphically.

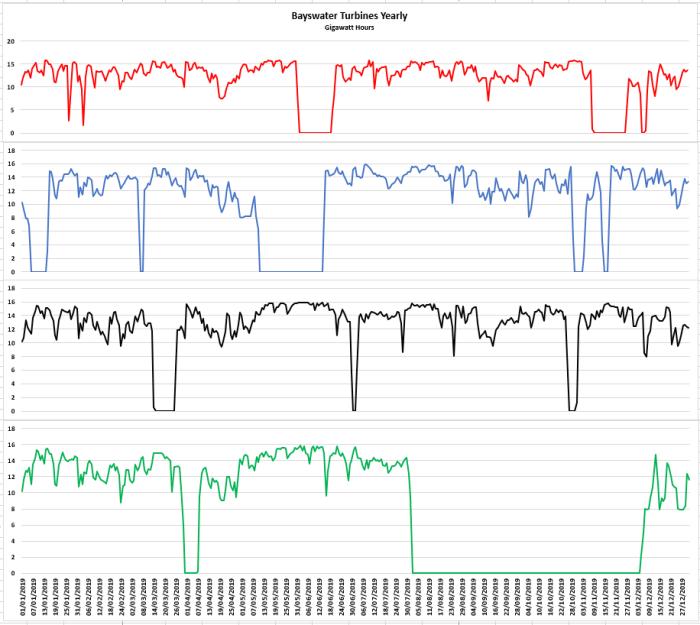

This chart exhibits the dispatched power in gigawatt hours of every turbine on every day rests. There are 237 days of a turbine off-line. Whether it is assumed that it was not mandatory to change these generators off, then the capability issue is 83%. Totally operational Bayswater Energy Station can produce 19 TW hours of electrical energy yearly. A 2 GW HELE coal-fired energy station has a price of $four billion. That determine relies on one in-built Germany in 2016 and the proposed station in Queensland at Collinsville, so an estimate to switch Bayswater could be $5 billion.
How variable is the output? That is tougher than an estimate for wind as a result of as a result of generators might intentionally be off-line additionally it seems there are variations that are in line with demand moderately than an intrinsic variation.
Web page Break
Information sources
All knowledge on this work comes from the official supply publicly revealed on the Nationwide Power Market web site. The information revealed there are zip information which have a 13-month lifetime. This has been collected right into a relational database on a strong PC. The sources of their uncooked type now occupy about 300 GB. Once you unzip these information, they’re in CSV type. That’s, they’re textual content information which have the information values separated by commas. These CSV information have been imported right into a relational database. The info used is the studies on electrical energy mills registered with the jap grid of Australia. There are about 300 mills registered. For every of these energy output at five-minute intervals is recorded. This can be a appreciable quantity of data and in no way simple to make sense of. That is tons of of gigabytes and from this all the data above was extracted. Being an analyst/programmer with experience within the SQL question language permits me to do knowledge mining of this for data. As an example, it might not be that tough to find out what a specific generator was outputting at a specific time to the closest 5 minutes over the previous 9 years.
