How Arctic Drilling Will Trample Junk Science Obstructionism
Visitor slam-dunk by David Middleton
How Science Acquired Trampled within the Rush to Drill within the Arctic
By ADAM FEDERMAN with pictures by NATHANIEL WILDER and video by PETER ELSTNER | 07/26/2019
Yearly, a whole bunch of petroleum business executives collect in Anchorage for the annual convention of the Alaska Oil and Gasoline Affiliation, the place they talk about coverage and have fun their achievements with the state’s political institution. In Might 2018, they once more filed into the Dena’ina Civic and Conference Heart, however that they had a brand new motive to have fun. Underneath the Trump administration, oil and fuel growth was poised to dramatically increase right into a distant nook of Alaska the place it had been prohibited for practically 40 years.
Tucked into the Tax Cuts and Jobs Act, a invoice signed by President Donald Trump 5 months earlier, was a short two-page part that had little to do with tax reform. Drafted by Alaska Senator Lisa Murkowski, the supply opened up roughly 1.6 million acres of the huge Arctic Nationwide Wildlife Refuge to grease and fuel leasing, a reversal of the federal coverage that has lengthy protected one of the ecologically necessary landscapes within the Arctic.
[Blah, blah, blah… caribou… polar bears… Orange man bad]
Politico
The article drones on with a bunch of Obama maladministration bureaucrats and holdovers whining about polar bears, the Porcupine caribou herd and options this “gotcha” map.
Determine 1. Drilling in ANWR will kill caribou calves! (Patterson Clark / POLITICO)
Firstly, there are not any “untapped reserves of oil” wherever. Reserves, by definition, have been tapped. ANWR Space 1002 comprises huge useful resource potential in keeping with the USGS. Assets have the potential to develop into reserves, they will additionally develop into dry holes. We gained’t have any concept what ANWR’s final oil & fuel reserves shall be till fairly a number of wells have been drilled and a few manufacturing historical past established… And the drilling most likely gained’t begin earlier than trendy 3d seismic information over ANWR Space 1002 develop into out there.
The thesis of the Politico article is that the acquisition of 3d seismic information in ANWR will devastate the “important calving grounds for the Porcupine caribou herd” and a few how wipe out all the polar bears who weren’t shot by Democrats.
Caribou, not simply the title of a 1974 Elton John album
Determine 2. Caribou vary in Alaska (Alaska Division of Fish and Sport)
In Europe, caribou are known as reindeer, however in Alaska and Canada solely the semi-domesticated type is known as reindeer. All caribou and reindeer all through the world are thought of to be the identical species, however there are 7 subspecies: barrenground (Rangifer tarandus granti), Svalbard (R.t platyrhynchus), European (R.t. tarandus), Finnish forest reindeer (R.t. fennicus), Greenland (R.t. groenlandicus), woodland (R.t. caribou) and Peary (R.t. pearyi). Alaska has predominantly the barren-ground subspecies and one small herd of woodland caribou, the Chisana herd, which strikes into Canada within the Wrangell-St. Elias space of Southcentral Alaska. Canada has three subspecies, the Peary, woodland and barren-ground.
Caribou in Alaska are distributed in 32 herds or populations. A herd makes use of a definite calving space that’s separate from the calving space of different herds, however completely different herds might combine on winter ranges.
Alaska Division of Fish and Sport
The Porcupine herd is likely one of the largest caribou herds on the earth and so they do calve on the ANWR coastal plain in SUMMER.
Nevertheless, exploration season isn’t in summer season
Busiest exploration season in many years deliberate for this winter
By:
Alex DeMarban
Anchorage Each day Information
Publish date:
Tue, 01/29/2019
The variety of exploration and manufacturing rigs engaged on the oil-rich North Slope ought to attain its highest degree in 20 years this winter, state officers say.
Oil subject employment is increased than final yr, modestly, however a primary in additional than 4 years.
And the state simply had one in every of its strongest North Slope lease gross sales in current historical past.
These elements and others present the current plunge in oil costs has not dampened business’s expectations for the area, amid newfound curiosity in a little-tapped geological formation, the Nanushuk, state officers indicated in a gathering with the Senate Finance committee final week.
However with lengthy growth home windows for Alaska tasks, a lot of the brand new oil manufacturing continues to be years away.
[…]
Alaska Journal of Commerce
Winter can also be the season for seismic surveys…
PUBLIC NOTICE
Larger Prudhoe Bay 2019 3D Seismic Program
The Alaska Division of Pure Assets (ADNR), Division of Oil and Gasoline (Division), has acquired a Geophysical Exploration Allow Software from BP Exploration (Alaska), Inc. (BPXA) for the Larger Prudhoe Bay 2019 3D Seismic Program. The Division is offering discover to all upland land homeowners that may very well be affected by the undertaking.
[…]
BPXA plans to conduct a three-dimensional (3D) seismic program on state lands and waters within the Prudhoe Bay space of the North Slope throughout the 2019 winter season. The survey shall be performed between January 1 and Might 31, 2019. The survey space lies primarily inside the Prudhoe Bay Unit with a western boundary close to the Kuparuk Operations Heart persevering with east to the Sagavanirktok River. Further program particulars are outlined within the Software.
[…]
State of Alaska
The proposed ANWR 3d survey was presupposed to have begun within the winter of 2019 and completed within the winter of 2020, if not accomplished in a single season.
SEISMIC EXPLORATIONON THE COASTAL PLAIN
Objective and Want
SAExploration has requested to conduct three Dimensional (3D) Winter Seismic Exploration Surveys on the Coastal Plain of the USFWS Arctic Nationwide Wildlife Refuge in Alaska. The proposed seismic exploration would start in winter 2018/2019 and, if not completed in a single yr,
would proceed by way of winter 2019/2020. Seismic exploration generates acoustic waves which might be picked up by sensors because the waves bounce off subsurface formations. From this info, photographs will be created that present subsurface topography and formations together with these areas of potential hydrocarbons.
The aim of the proposed seismic exercise is to accumulate high quality, excessive decision seismic information, utilizing vibroseis strategies to determine potential oil and fuel reserves. Approval of the proposed motion would authorize SAE to conduct 3D seismic surveys starting when frost and snow
cowl are at ample depths to guard tundra and would proceed by way of the winter seasons till tundra journey has been closed.
Evaluation of this undertaking will embody entry to this system space from Deadhorse, storage of gas, and the usage of as much as two cell camps, every able to housing as much as 160 individuals. The whole proposed undertaking space would embody all the Coastal Plain, roughly 2,600 sq. miles
(1,664,000 acres) (program space).
[…]
US Bureau of Land Administration
The beginning date in SAE’s software has been delayed to December 2019. SAE will purchase the 3d seismic information with Vibroseis sources.
Land Acquisition
Supplys
Land acquisition for reflection seismology makes use of an array of sources and receivers. The alternatives of which sources and receivers to make use of rely upon the targets of the survey together with price and environmental circumstances.
Explosive Sources
Dynamite is a generally used impulse supply for exploration. Dynamite is most well-liked when the survey space is in harsh terrain that Vibroseis can’t traverse akin to marshes, mountains, or environmentally delicate areas. The dynamite should be buried previous to detonation to extend the quantity of vitality transmitted into the subsurface and for security. Because the vitality is produced immediately from the detonation, dynamite sources produce a wavelet that’s roughly minimal section. Nevertheless, dynamite does have its drawbacks. Inconsistencies within the blasts together with variations within the burial depth and the native floor circumstances will trigger variations within the produced sign. One other impulse supply used is modified shotguns known as Betsy Weapons. Betsy Weapons are used for shallower and smaller surveys.
Vibratory Sources
One other generally used supply sort for petroleum exploration are vibratory sources. Vibroseis vans, as proven in determine 1, are used to transmit vitality into the earth utilizing a specified vary of frequencies over a specified time. The vans function a heavy mass that vibrates vertically on a base plate to switch vitality into the subsurface. The vary of frequencies (i.e. how briskly the mass vibrates) and the size of time that the vibration happens are distinctive for every survey. Because the sign inputted into the subsurface is understood, it may be mathematically eliminated in processing to assist take away noise and create a hint that resembles the true reflectivity of the survey space. In an effort to enhance the post-correlation sign to noise ratio, an array of vibroseis vans could also be used, because the post-correlation sign to noise ratio is S:R = F(LN)^1/2, the place F = the load of the truck(drive utilized), L = the size of the sweep and N = the variety of sweeps[1]. Utilizing an array of vans will improve the drive utilized, due to this fact enhancing the Sign to noise Ratio (SNR). Usually, Vibroseis vans usually solely produce P-waves as they’re designed to vibrate the mass vertically. Vibroseis vans that produce S-waves exist, however they’re uncommon and often used. Vibroseis vans are usually used when the acquisition area options no excessive topography, densely populated areas, and a comparatively dry local weather. Vibroseis vans don’t do nicely in moist climates, as they’re very heavy and have a tendency to get caught and go away excessive quantities of property harm in moist terrain.
Weight Drops
Weight drops are one other sort of supply. These are impulse sources that are usually used for shallow subsurface because of being a lot decrease vitality than dynamite or vibroseis. Examples of weight drops are sledgehammers hitting a steel plate on the bottom and weights dropped heights of not less than two meters. Accelerated weight drops (AWD) additionally fall on this class. AWD work by utilizing a hydraulic system to raise a heavy metal hammer up, and a gas-charged piston forces the piston down. These have been confirmed as viable sources for VSP’s and tool-orientation for micro-seismic surveys. [2]
SEG Wiki
Determine three. “An image of a vibroseis truck (or “thumper”) utilized by Dawson Geophysical. The plate within the center is used to transmit vitality into the Earth.” SEG Wiki
This form of exercise shall be going down whereas the Porcupine caribou herd are at their most migratory distance away from the ANWR coastal plain.
The one potential environmental influence of this seismic survey is the potential for tire and/or tread tracks within the tundra. By the point the Porcupine caribou herd returns to the ANWR coastal plain in summer season, the seismic crews shall be long-gone.
Blissful Seismic Trails to you
Determine four. 1984-1985 ANWR 2nd seismic survey “stick map.” (U.S. Fish & Wildlife Service)
Seismic exploration, licensed by the U.S. Congress, was performed on the coastal plain of the Arctic Refuge throughout the winters of 1984 and 1985. Exploration throughout winter causes much less harm to tundra vegetation and soils than in summer season, however harm does happen. Snow cowl on the Refuge coastal plain is generally shallow, often lower than one foot deep. Sturdy winds blow the snow into depressions, leaving increased areas with thinner snow cowl, making them extra prone to impacts from autos.
Because of the 1984-85 seismic exploration, often known as 2-D (two-dimensional) seismic, 1250 miles of trails – made by drill, vibrator and recording autos – crossed the coastal plain tundra (see map above). Further trails have been created by D-7 Caterpillar tractors that pulled ski-mounted trailer-trains between work camps.
Refuge employees have monitored restoration of the seismic path harm on the Refuge by periodically gathering vegetation information at 100 everlasting plots. To find out how a lot path continues to be disturbed they fee one other 200 factors for disturbance degree. Whereas 90% of all trails recovered nicely throughout the first 10 years after exploration, 5% of trails had nonetheless not recovered by 2009, 25 years after the disturbance.
[…]
U.S. Fish & Wildlife Service
Results of 1984-1985 Seismic Trails on Porcupine caribou herd
Porcupine Caribou Herd reaches document excessive inhabitants
Shady Grove Oliver, The Arctic Sounder
January eight, 2018
The Porcupine caribou herd has a document excessive variety of animals. That’s in keeping with a photocensus compiled final summer season by the Alaska Division of Fish and Sport.
The herd has been rising at a fee of about three to four % yearly since 2010, Northeast Alaska Assistant Space Biologist Jason Caikoski stated final week. As of this yr, the herd reached an estimated 218,000 animals.
[…]
That’s practically 40,000 extra caribou than have been current throughout the herd’s final inhabitants peak in 1989.
Nevertheless, current advances in photocensus expertise have additionally made estimating the herd’s numbers extra correct over time.
[…]
Because the herd’s peak within the late 1980s, the inhabitants declined to a low of 123,000 in 2001, Fish and Sport famous. Since then, the herd has been steadily rising, primarily based on census counts.
[…]
Anchorage Each day Information
The Porcupine caribou herd inhabitants was rising whereas these “evil” seismic trails have been being lower. The necessary query is that this:
Why did the Porcupine caribou inhabitants decline from 1989-2001?
I’m positive Yale Setting 360 can reply this query.
A Troubling Decline within the Caribou Herds of the Arctic
Throughout the Far North, populations of caribou — an indispensable supply of meals and clothes for indigenous individuals — are in steep decline.
Scientists level to rising temperatures and a resource-development increase because the prime culprits.
BY ED STRUZIK • SEPTEMBER 23, 2010
[…]
In keeping with scientists, the causes of the worldwide caribou decline are easy: quickly rising Arctic temperatures are throwing caribou out of sync with the setting wherein they advanced; oil and fuel growth, mining, logging, and hydropower tasks within the Far North are impinging on the caribou’s vary; and, although not a significant component, searching is additional depleting already beleaguered caribou populations.
[…]
Anne Gunn, a former biologist with the federal government of the Northwest Territories and now a scientific guide, is worried that the whittling away of caribou habitat is happening simply because the animals are feeling the results of worldwide warming. Not like some scientists, Gunn, who has greater than 30 years of subject expertise, believes caribou can adapt to the local weather modifications occurring now. She is most involved that little or no is being carried out to guard crucial caribou habitat, particularly the crucial calving grounds and migration corridors. Of 24 giant caribou herds being tracked by CARMA — the Circumpolar Rangifer Monitoring and Evaluation Community — solely the calving grounds of the Porcupine and Bluenose West herds are absolutely or largely protected.
“For caribou it’s all about ‘house’ — their perceptions of what house they want, together with the house wanted to distance themselves from us,” stated Gunn. “Local weather change and overhunting are very critical elements that must be addressed. However except we give caribou the house they want, I’m afraid we’re going to see these declines proceed.”
Yale Setting 360
So… World warming and “oil and fuel growth, mining, logging, and hydropower tasks” triggered the decline… Besides there have been no “oil and fuel growth, mining, logging, and hydropower tasks” upon which the Porcupine inhabitants decline may very well be blamed… And the worldwide warming that shrank the inhabitants was supposedly nonetheless ongoing whereas the Porcupine caribou herd reached a “document excessive inhabitants” in 2017.
Why can’t environmentalists simply be sincere? All they should say is, “We don’t know why the Porcupine caribou herd inhabitants did what it did… We simply hate something associated to capitalism.”
“For caribou it’s all about ‘house’ — their perceptions of what house they want, together with the house wanted to distance themselves from us” …
Porcupine caribou herd will nonetheless have loads of “the house wanted to distance themselves from us” as a result of many of the exploration actions will happen when they’re as distant from ANWR Space 1002 as they will get. It could be geographically not possible for them to have any extra space. Any oil discoveries made, shall be developed from small pad websites, which would be the focus of little or no human exercise throughout calving season.
Right now’s drilling leaves a small footprint
Nov 24, 2014
When Prudhoe Bay was developed within the 1970’s, about 2 % of the floor space over the sector, or 5,000 acres, was lined by gravel for roads and drilling and manufacturing facility websites. If Prudhoe Bay have been developed at present, utilizing classes discovered because the 1960’s, gravel would cowl lower than 2,000 acres, a 60 % discount.
Prolonged-reach Drilling
Advances in directional, or extended-reach, drilling now enable producing firms to succeed in a reservoir three miles from the floor location. Quickly “prolonged attain” wells out to 4 miles shall be doable on the North Slope. When Prudhoe Bay was first developed, wells may attain out just one and a half miles.
Nicely Spacing
Within the 1970’s, manufacturing wells on drill pads in Prudhoe Bay have been spaced 100 ft or extra aside. New directional drilling strategies and drill tools enable wells to be spaced 25 to 15 ft aside, and in some circumstances 10 ft aside. A drill pad that will have been 65 acres in 1977 will be lower than 9 acres at present. The identical variety of wells that required a 65-acre pad within the 1970’s will be drilled on lower than a nine-acre pad at present.
Drilling Mud Disposal
New expertise permits producing firms to get rid of reserve pits for drilling fluid (“mud”) and cuttings. Mud and cuttings are actually injected the below-ground by way of disposal wells.
Ice Roads and Drilling Pads
As a substitute of constructing a gravel pad for exploration drilling, firms are actually constructing short-term pads of ice, which disappear after the exploration nicely has been drilled. Non permanent ice roads have lengthy been used to help winter exploration drilling on the North Slope.
ANWR.org

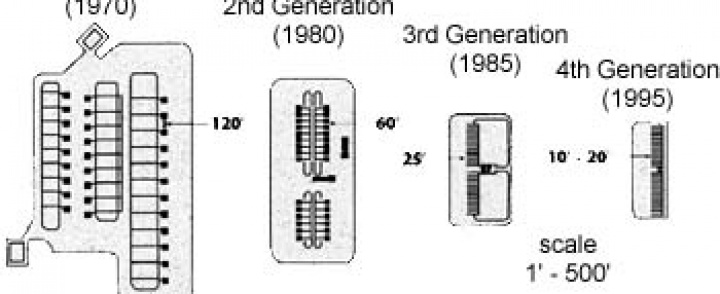

Determine 5. Evolution of North Slope drilling pads. (ANWR.org)
Talking of “it’s about house”…
Concerning the creator
David Middleton has been a geophysicist/geologist within the oil & fuel business since 1981. He has labored the Gulf of Mexico since 1988, and East Texas from 1981-1988. He has visited many seismic survey crews, a few Vibroseis crews in North Central Texas in 1981, fairly a number of dynamite crews in East Texas from 1981-1988 and has by no means seen a caribou or another hoofed animal injured throughout seismic survey operations… Though it’s actually cool when a shot gap blows out.
