Do Fashions Run Sizzling Or Not? A Course of Management View
Visitor publish by Kevin Kulty
Introduction
This quick essay was prompted by a latest article relating to enhancements to uncertainty in a world imply temperature estimate.[1] Nonetheless, a lot bandwidth has been spilt recently within the associated subject of error propagation [2, 3, 4], and so a small portion of this essay in its concluding remarks is dedicated to it as properly.
Manufacturing engineers work to enhance product design, make merchandise simpler to fabricate, decrease prices, and preserve or enhance product high quality. Among the many instruments they use to perform this, many are statistical in nature, and these have pertinence to the subject of the floor temperature file and its interpretation within the mild of local weather mannequin projections. One device I plan to current right here is statistical course of management (SPC).[5]
1. Ever Current Variation
Manufactured objects can’t be made identically. Even in mass manufacturing below the management of machines, there are influences equivalent to put on of the machine, variations in settings, talent of operators, incoming materials property variations and so forth, which result in variation in a ultimate product. All precision manufacturing begins with an examination of two issues. First, there may be the shopper specification. This consists of all of the vital product parameters and the bounds that these parameters should keep inside. Performance of a product suffers if these high quality measures don’t stay inside limits. Second is the method functionality. Any producer well worth the title will know the way the method used to make merchandise for a buyer varies when it’s in management. This leads the producer to an estimate of what number of merchandise in a run might be exterior tolerance, what number of may be reworked and so forth. It’s not attainable to estimate prices and income with out figuring out functionality.
2. Course of Functionality and Management
If a producer’s course of can produce routinely inside the specs, maybe just one in 100 objects, or one in a thousand or three in one million (six sigma) exterior of it, no matter is value efficient and achievable, then the method is succesful. If it proves not succesful one would possibly ask what value in new equipment would make it succesful, and if the reply just isn’t value efficient one would possibly cross on the manufacturing alternative or have somebody extra succesful deal with it. When a course of is in management, it’s working in addition to is humanly attainable contemplating one’s functionality. A course of in management is a crucial idea to our dialogue.
three. Statistical Course of Management
Statistical course of management (SPC) is especially a means of charting and decoding measurements in actual time. Varied SPC charts grow to be a device via which an operator, probably somebody of modest coaching, can monitor a course of and modify it or cease it if indications are that it’s drifting uncontrolled. There are various completely different attainable management charts, however a typical one is the X −bar chart so named as a result of the parameter being monitored and recorded on the chart is the imply attribute of a pattern of manufactured objects. Usually it’s paired with an R chart which exhibits the vary inside the similar measurements. R is usually utilized in manufacturing as a result of it’s able to exhibiting the identical details about variation as say, commonplace deviation, however with a lot much less calculation. Let’s talk about the X −bar chart. Determine 1 exhibits an instance of a paired set of charts.[5]
Determine 1. A pair of management charts for X-bar and vary. The X-bar chart exhibits measurements exceeding management limits above and beneath, whereas the vary exhibits no improve in variability. We conclude an operator is unnecessarily altering machine settings. Supply [5].
The chart begins with its building. First, there’s a specified goal worth for the method. A course of is then designed to attain this goal. Then some variety of measurements are taken from this course of whereas it’s identified to be working in addition to is humanly attainable – i.e. in management. Measurements are gathered into consecutive teams of fastened quantity, N (5 and 7 are widespread), and the imply of the means, and vary of the means is calculated. Useless heart horizontally throughout the chart is the goal worth then horizontal strains are positioned above and beneath at some a number of of the method commonplace variation, measured by vary or commonplace deviation. These are often called the method management limits (higher and decrease management limits respectively UCL, LCL).
At this level one makes use of the chart to watch an ongoing course of. Consider charting as recording a unbroken sequence of experiments. On a schedule our fastened variety of manufactured objects (N) are faraway from manufacturing. The imply and vary of some vital attribute is calculated for this pattern and the outcomes plotted on their respective charts. The null speculation in every experiment is that the method continues to run simply because it did through the chart creation interval. As work proceeds the sequence of measured and plotted samples present both a sample that’s anticipated of a course of in management, or a sample of sudden variations which counsel a course of with issues. Statement by an operator of an unlikely sample, equivalent to; cycles, drift throughout the chart, too many factors plotting exterior management limits, or hugging one aspect of the chart, is proof of a course of uncontrolled. An uncontrolled course of may be stopped briefly whereas the method engineer or upkeep discover and rectify the issue. One factor value emphasizing is that SPC is a extremely profitable device for dealing with variation in processes and figuring out issues.
Determine 2. “…Comparability of a big set of local weather mannequin runs (CMIP5) with a number of observational temperature estimates. The thick black line is the imply of all mannequin runs. The gray area is its mannequin unfold. The dotted strains present the mannequin imply and unfold with new estimates of the local weather forcings. The colored strains are 5 completely different estimates of the worldwide imply annual temperature from climate stations and sea floor temperature observations….” Figures and outline: Gavin Schmidt[6].
four. Ensemble of Fashions
Let’s flip consideration to the topic of local weather. The oft cited ensemble of mannequin projections is one thing like a management chart. It represents a ramification of mannequin projections fastidiously initiated to symbolize what we consider is a future path of imply earth temperature with credible additions of CO2. It’s not a plot of the total variation that local weather fashions would possibly conceivably produce, however slightly extra managed variation of our expectations given what we all know of local weather and the differential equations representing it when it’s in management. It’s this in management idea that makes the method management chart and the projection ensemble much like each other. The resemblance is much more full with an overlay of noticed temperature.

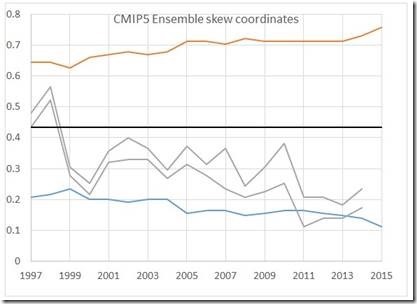

Determine three. The gray 95% bounds of Determine 2 redrawn in skewed coordinates (blue/orange) to look extra like a management chart. The gray strains point out the envelope of observations. Black line is goal.
This ensemble turned controversial as soon as individuals started inserting noticed temperatures on it. Schmidt produced one in a weblog publish in 2015.[6] Determine 2 exhibits it. What the comparability between noticed and projected temperature confirmed, initially, was a pattern of noticed temperature throughout the ensemble. Some variations of comparable graphs have noticed temperatures departing from projections solely.[7] Figures three and four present Determine 2 rotated into skewed coordinates to look extra like a management chart monitoring a course of. Schmidt states that Earth temperature are properly contained inside the ensemble – particularly so after accounting for some extraneous elements (Determine four). But, this misses an vital level. The measurements in Determine three pattern in an unlikely means throughout the ensemble, and have gone to operating alongside the decrease restrict. After eliminating the pattern in Determine four the comparability nonetheless exhibits noticed temperatures hugging the decrease finish of the projections. Regardless of being instructed usually that the departure of observations from the middle of the ensemble is a non-issue, with every new comparability some unlikely options stays to gasoline doubt. It’s troublesome to keep away from concluding that what’s fallacious is among the following.
(1) The fashions do run too sizzling. They overestimate warming from rising CO2, presumably due to a flawed parameterization of clouds or another issue.
(2) The observations are operating too cool. What I imply is there are elements exterior to the fashions that are suppressing temperature in the actual world. The fashions should not full. Determine 2 from Realclimate.org takes exogenous elements into consideration. But, word that whereas the inclusion of those elements reduces the inconceivable pattern throughout the diagram, it leaves the inconceivable tendency to cling to the decrease half of the diagram, which suggests merchandise 1 on this record once more.
(three) The fashions and observations are of barely various things. The observations combine unrelated issues collectively, or comprise corrections and processing not duplicated within the fashions.

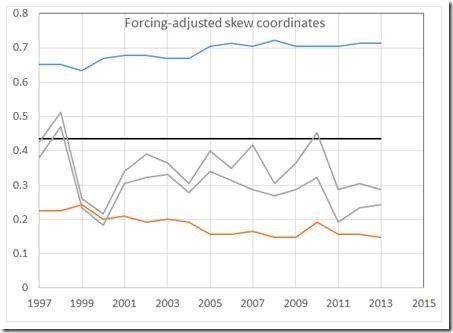

Determine four. The dashed (compelled) 95% bounds of Determine 2 redrawn in skewed coordinates (blue/orange) to look extra like a management chart. The gray strains point out the envelope of observations. Black line is goal.
These charts current information solely via 2014, however whereas noticed temperatures rose into the goal area of the chart with the latest El Nino, they’ve extra recently settled again to the decrease a part of the chart. It takes a unprecedented occasion to push observations towards the goal area. Yet another statement about these graphs appears pertinent. If as Lenssen, et al, declare the 95% uncertainty bounds of the worldwide imply temperatures are really as small as zero.05C, then the unfold within the varied observations is, at instances, unlikely itself.
Our little experiment right here can’t settle the query of whether or not fashions run too sizzling, however two of our three potentialities counsel they do. It must be vital to determine if this chance is the reality.
5. Conclusion
The primary draft of this essay concluded with the earlier part. Nonetheless, up to now few weeks there was a prolonged dialogue at WUWT about propagation of error, or what one may name propagation of uncertainty. The ensemble of mannequin outcomes is, in a single viewpoint, an vital monitor (like SPC) of well being of our planet. If we consider that the assumptions going into manufacturing of the fashions are a real illustration of how the Earth works, and if we’re sure that our measurements symbolize the identical factor the ensemble represents, then we arrive on the following: A pattern throughout our management chart towards increased values suggests a worrying downside; a pattern throughout the chart towards decrease values suggests in any other case. However with out some credible measure of bounds and backbone, no such use is cheap.
One response of the local weather science neighborhood to the obvious divergence of observations to fashions is to argue that there actually is not any divergence as a result of the ensemble bounds may very well be widened to indicate true variability of the local weather, and as soon as that is carried out the ensemble limits will fortunately enclose observations. Or, they argue, there is no such thing as a divergence if one takes into consideration exogenous elements ex publish. However in my opinion arguing this fashion makes modeling pointless as a result of it removes one’s potential to check something. There may be actually a battle between the will to make uncertainties small, thus making a definitive scientific assertion, and a need to make the bounds bigger to incorporate the proper reply. The identical level Vasquez and Whiting make right here [8] …
”…Normally, it’s assumed that the scientist has decreased the systematic error to a minimal, however there are all the time irreducible residual systematic errors. Then again, there’s a psychological notion that reporting estimates of systematic errors decreases the standard and credibility of the experimental measurements, which explains why bias error estimates are infrequently present in literature information sources….”
is what Henrion and Fischoff [9] discovered to be so within the measurement of bodily constants over 30 years in the past. Propagation of error performs an vital function within the interpretation of the bounds and backbone of fashions and information. It’s extra than simply initiation errors being damped out in a GCM. However to debate its pertinence would make this publish too lengthy. Maybe we‘ll return in per week or two when that subject cools off.
6. Notes:
(1) Nathan J. L. Lenssen, et al., (2019) Enhancements within the GISTEMP Uncertainty Mannequin. JGR Atmospheres, 124, 6307-6326.
(2) Pat Frank https://wattsupwiththat.com/2019/09/19/emulation4-w-m-long-wave-cloud-forcing-error-and-meaning/
(three) R.C. Spencer, https://wattsupwiththat.com/2019/09/13/a-stovetop-analogy-to-climate-models/
(four) Nick Stokes, https://wattsupwiththat.com/2019/09/16/how-errorpropagation-works-with-differential-equations-and-gcms/
(5) AT&T Statistical High quality Management Handbook, Western Electrical Co. Inc., 1985 Ed.
(6) RealClimate, NOAA temperature file updates and the ‘hiatus’ four June 2015, Accessed September 18, 2019.
(7) Ken Gregory, Epic Failure of the Canadian Local weather Mannequin,
https://wattsupwiththat.com/2013/10/24/epic-failure-of-the-canadianclimate-model/
(eight) Victor R. Vasquez and Wallace B. Whiting, 2005, Accounting for Each Random Errors and Systematic Errors in Uncertainty Propagation Evaluation of Laptop Fashions Involving Experimental Measurements with Monte Carlo Strategies, Danger Evaluation, Quantity25, Challenge 6, Pages 1669-1681.
(9) Henrion, M., & Fischoff, B. (1986). Assessing uncertainty in bodily constants. American Journal of Physics, 54( 9), 791– 798.
