Mesmerising Experiment Exhibits The Unusual Response of Vibrating Glass Beads Underwater

In 1787, the “father of acoustics” Ernst Chladni first recorded the sample of behaviour of sand grains on a vibrating plate – the best way that heavier particles journey away from the vibrations, and lighter particles transfer in direction of them. In a brand new experiment underwater, researchers have now noticed the precise reverse taking place.


This newest research might basically change our occupied with how sound can transfer particles by means of vibrations – views which were in place for over 200 years. Additional, it may additionally open up new strategies for manipulating particles in business and medication.

Scientists from Aalto College in Finland discovered that when a plate is vibrated underwater, the heavier particles head for the spots the place the amplitude of movement is the best, referred to as the antinodes. The time period they’re utilizing for the unusual impact is “inverse Chladni patterns”.

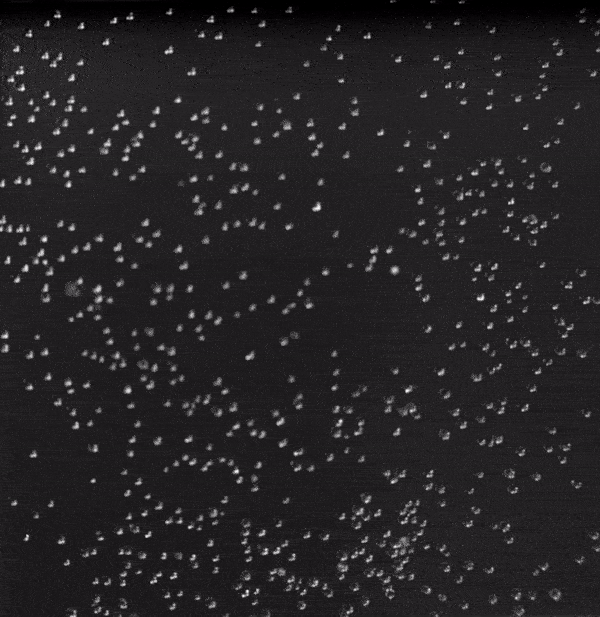

Heavy particles transfer in direction of antinodes of a submerged vibrating plate (Latifi et al., Bodily Evaluate Letters, 2019)

“It is a stunning end result, nearly a contradiction to frequent beliefs,” says one of many researchers, Quan Zhou.

For the experiment, Zhou and his colleagues used glass beads lower than a millimetre (zero.04 inches) in dimension, unfold over a submerged silicon plate on a piezoelectric transducer. The plate was then vibrated at a wide range of frequencies, creating waves on the water.

So why was the impact the alternative of what was anticipated?

It was early 19th century scientist Michael Faraday who defined the unique impact Chladni noticed, suggesting that heavy particles get kicked throughout the plate till they attain the nodal strains, the factors of least vibration. When this occurs, they’re now not getting kicked with the identical pressure.

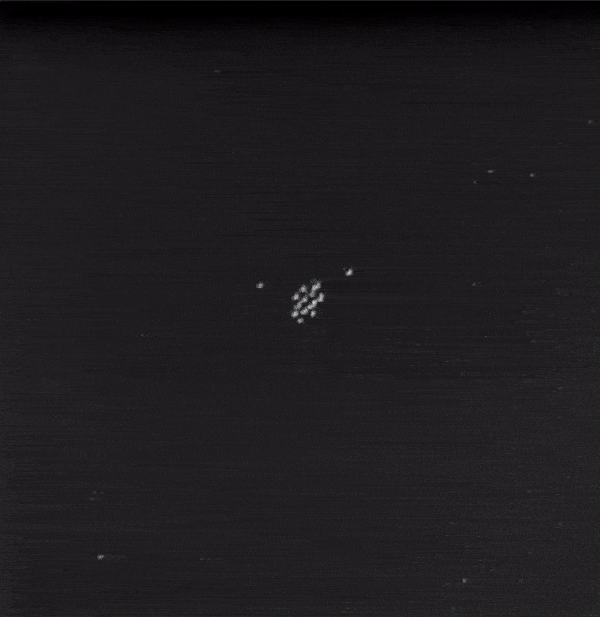

016 particle maniplulation 3Particles manipulated to separate into teams (Latifi et al., Bodily Evaluate Letters, 2019)

The researchers behind the brand new experiment suppose that the presence of the waves within the water, the strain of gravity, and fluid drag act towards the pure push for the particles to leap up from the plate’s floor.

Utilizing this information, the staff behind the experiment developed pc algorithms that would regulate the frequency of the plate vibrations as a way to management the course of the glass beads – primarily plotting a course for particles in actual time.


“We will transfer particles at nearly any frequency, and we don’t depend on the resonance of the plate,” says Zhou. “This provides us quite a lot of freedom in movement management.”

For instance, the researchers efficiently guided a single particle by means of a maze, and in addition merged and separated a swarm of particles by taking part in totally different musical notes.

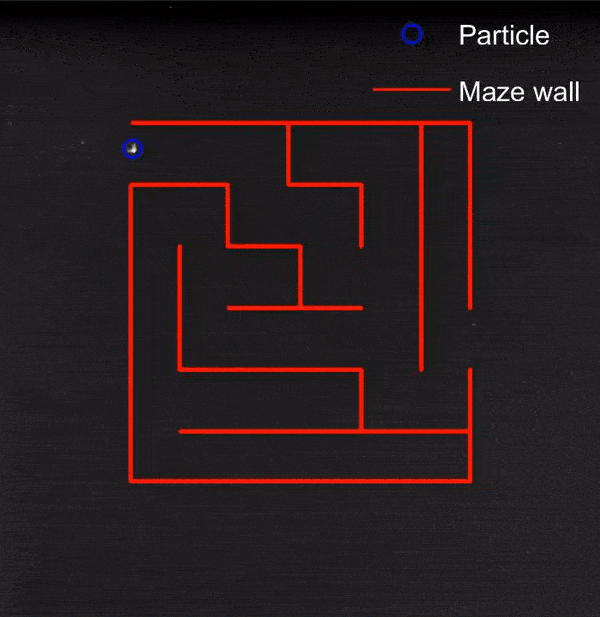

016 particle maniplulation 3Particle manipulated to navigate by means of a maze (Latifi et al., Bodily Evaluate Letters, 2019)

If the method could be efficiently scaled down, there are quite a lot of areas in organic and medical functions the place this might turn out to be useful – any form of scenario the place tiny objects (possibly even dwelling cells) should be directed in direction of a goal.

“Many procedures in pharmaceutical analysis and microsystem meeting require the power to maneuver and manipulate small particles simply,” says Zhou.

“Utilizing only a single actuator to do all these various things, we’re opening a path to new particle dealing with strategies. Moreover, the strategy can encourage the long run factory-on-a-chip methods.”

The analysis has been revealed in Bodily Evaluate Letters.
